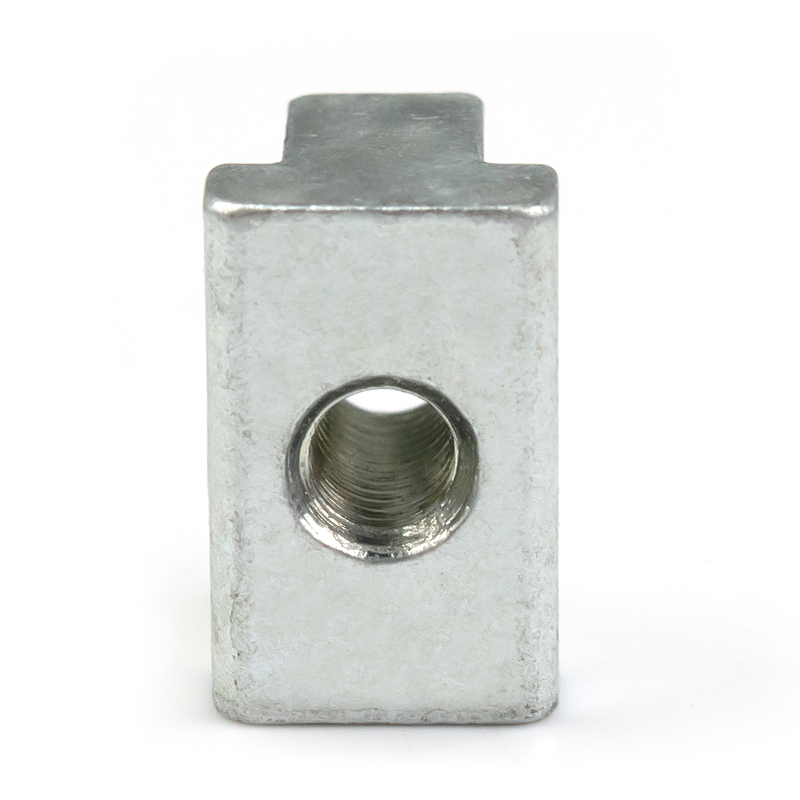

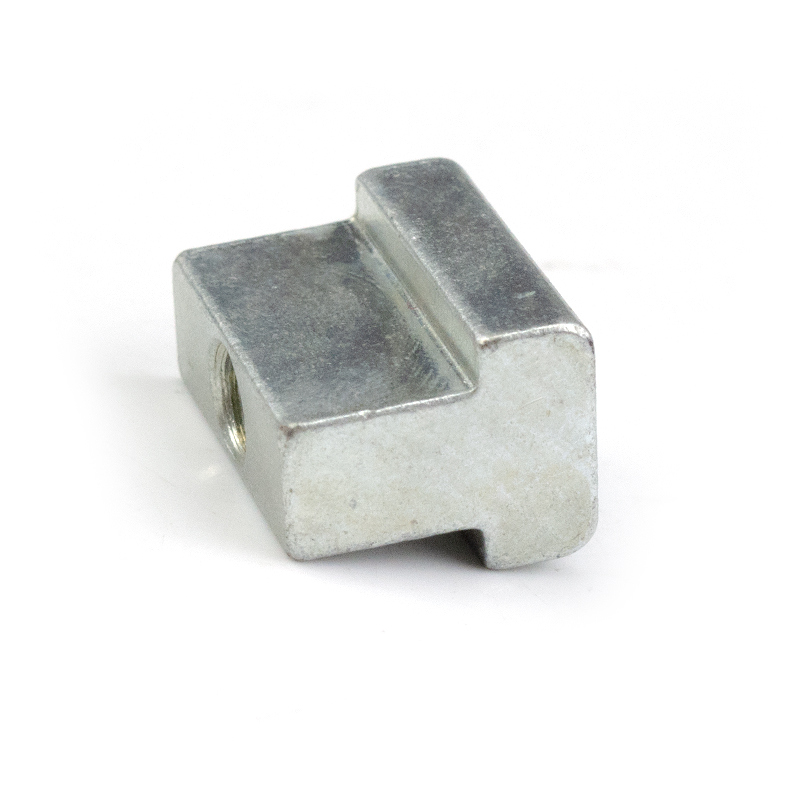

T-shaped slide rail boss structure
At the top, there is a T-shaped boss that matches the slot of the aluminum profile. The height of the boss precisely matches the depth of the slot, and after sliding in, the gap between the top and bottom is less than 0.3 millimeters, ensuring smooth sliding without shaking. The two sides of the boss can be equipped with anti-detachment chamfers or straight edges, respectively suitable for ordinary installation and anti-detachment requirements.

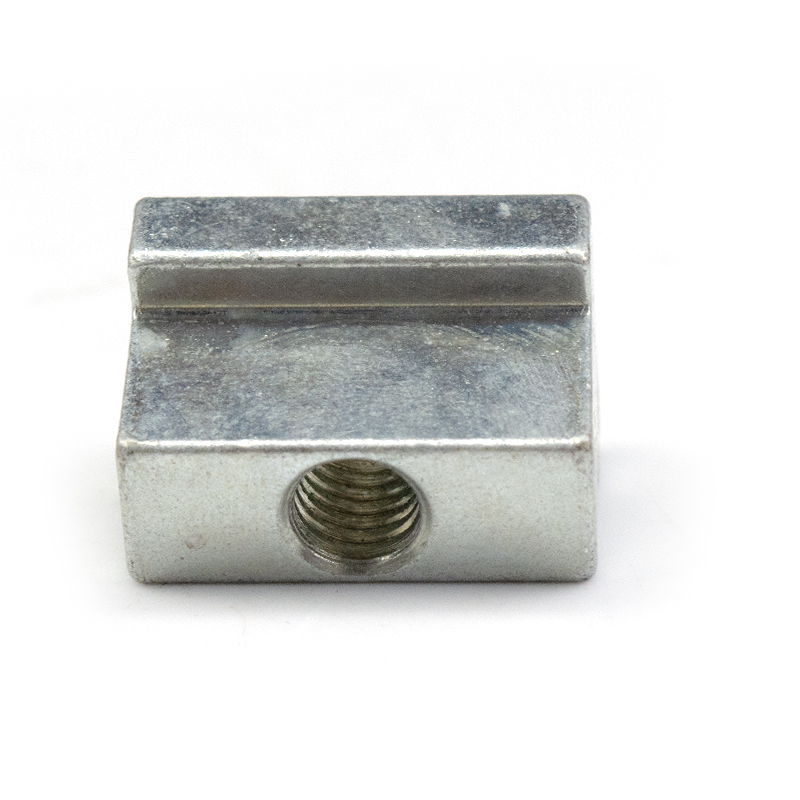

Horizontal threaded through-hole design
The threaded holes are perpendicular to the sliding direction of the slider and run horizontally throughout the width. Bolts can be inserted from the side to connect, and the connection direction is perpendicular to the axis of the profile, which is particularly suitable for lateral installation of panels and brackets.
Solid block-shaped high-strength body
The entire body is made by machining or forging a solid metal block. There is no hollow thin-walled structure. The shear strength and compressive strength are much higher than those of thin sheet nuts formed by stamping, and it can withstand the impact load of heavy equipment.
Four-sided processing positioning reference
The four sides of the slider are all precision machined surfaces, which can be used as positioning references during assembly to ensure the parallelism or perpendicularity requirements of the connecting parts and the profile.
Top pressure-bearing plane
At the root of the T-shaped boss, there is a wide and thick horizontal pressure-bearing surface. When the bolt is tightened, it directly presses against the edge of the profile slot, forming a stable friction locking, preventing the slider from rotating or tilting in the slot.

High stiffness and precise positioning
The solid block structure eliminates elastic deformation, and combined with precisely processed slide rails, the positioning repeatability accuracy can reach ±0.1 millimeters. It is suitable for high-precision equipment that requires repeated position adjustments, such as the guard cover of CNC machines and the follow-up bracket of laser cutting machines.
Heavy-duty bearing capacity
The M8 specification slider in the 40 series aluminum profiles has an anti-detachment force of over 3000 Newtons, which is 2 to 3 times that of ordinary ball nuts, meeting the installation requirements of heavy-duty motors, reducers and other large mass components.
One-way sliding anti-detachment
The geometric fit between the T-shaped protrusion and the channel forms a natural anti-detachment structure. Even if the bolt is not tightened, the slider will not fall vertically and will only slide in the direction of the channel length, significantly enhancing the safety of high-altitude operations and flipping assembly.
Multi-directional connection expansion
According to custom requirements, additional threaded holes, through holes or protrusions can be added to the top, bottom or side of the slider to achieve complex connection layouts in three-dimensional space, replacing multiple traditional connection components with one piece.
Long durability and long service life
The metal slider and aluminum profile channel have the same metal contact (or zinc coating protection), with a low wear coefficient. After repeated sliding for ten years, the mating clearance does not increase significantly, while the spring steel balls of ball nuts are prone to fatigue failure.

Heavy machinery equipment
The frame columns and crossbeams of large-scale automated production lines, which are connected and bear heavy mechanical arms and conveyor belt drive devices, ensure no loosening during long-term operation.
CNC machine protection
The sliding guide rails for the machine guard and the sheet metal enclosure, with sliding blocks guiding the guard to open and close smoothly within the profile slots, and providing locking points.
Laser cutting equipment
The servo brackets for the cutting head, and the sliding suspension system for the dust removal ducts, with high-precision positioning to ensure cutting quality and rapid sliding response to the fluctuations of the material.
Warehouse and logistics system
The shelf columns of the vertical warehouse, and the adjustable installation of the stacker crane tracks, to bear heavy shelves and frequently operating equipment.
New energy equipment
The angle adjustment mechanism of the photovoltaic tracking support, and the internal equipment guide rails of the energy storage container, with strong resistance to outdoor environmental conditions.
Research and experimental platform
Large-scale physical experiment devices, and the modular construction of wind tunnel models, with high-precision positioning and the need for repeated disassembly and assembly.
