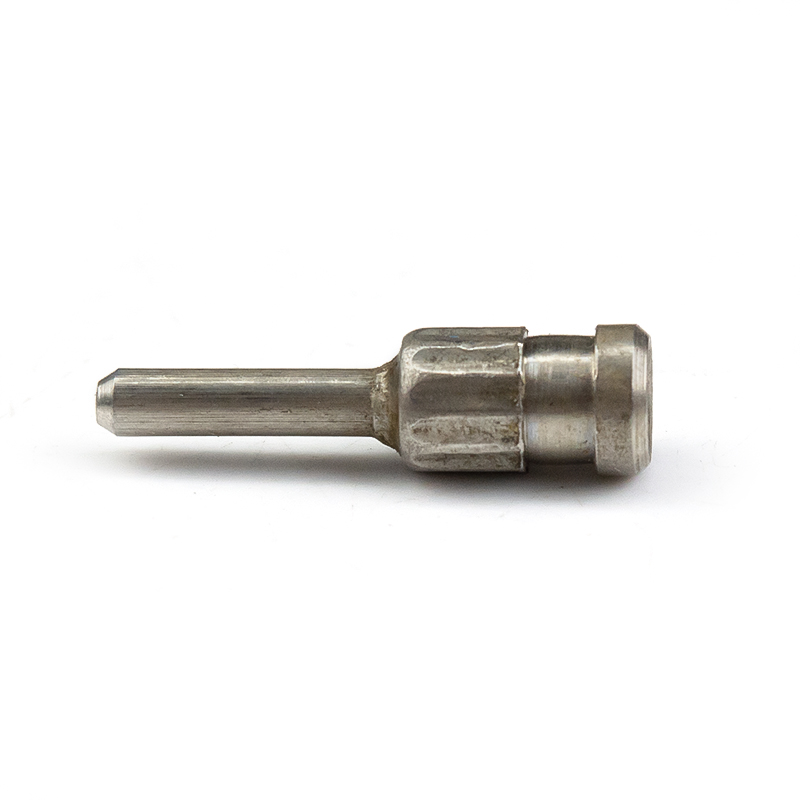

Integrated stepped structure:The overall design of three sections - the front positioning pin, the rolled-over press-fit area in the middle, and the threaded sleeve at the rear - eliminates the cumulative errors during assembly.

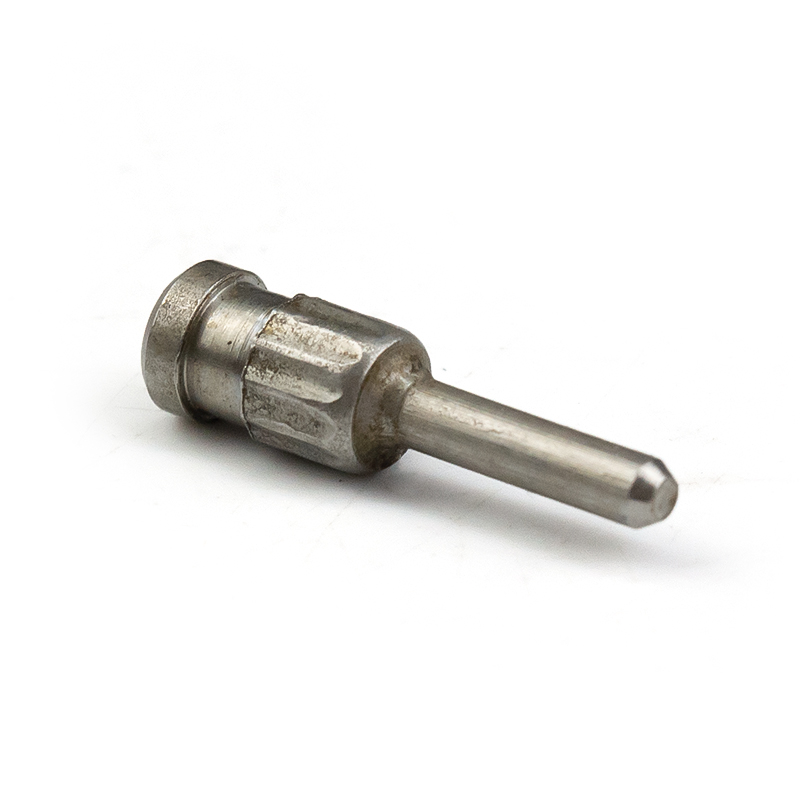

Straight-line pattern knurled pressing section:The middle section adopts axial straight-line engraved patterns. After being embedded in the base material, it forms a mechanical fit, with excellent resistance to torque and pull-out force.

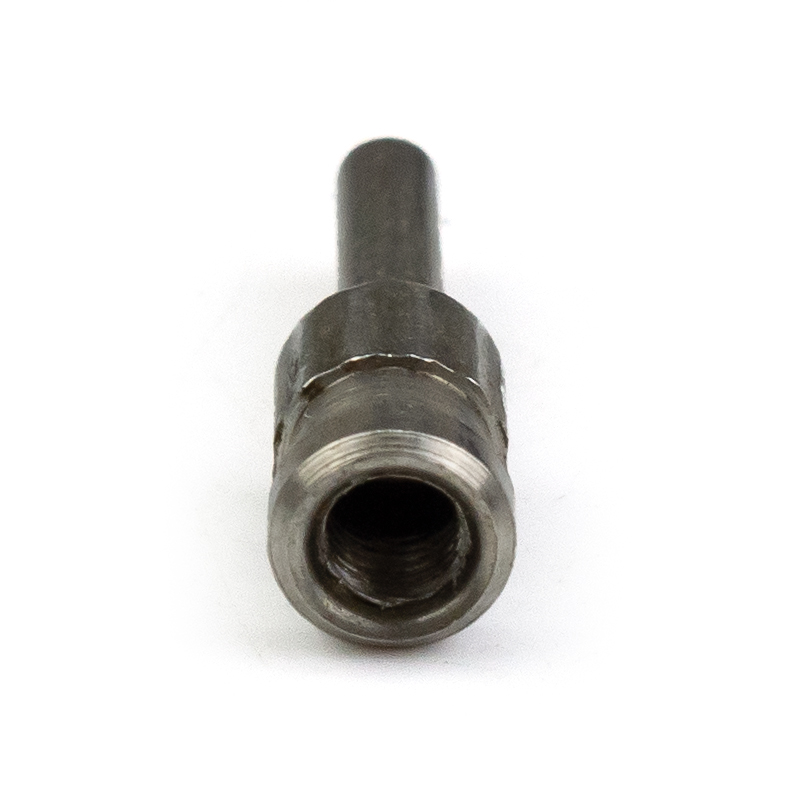

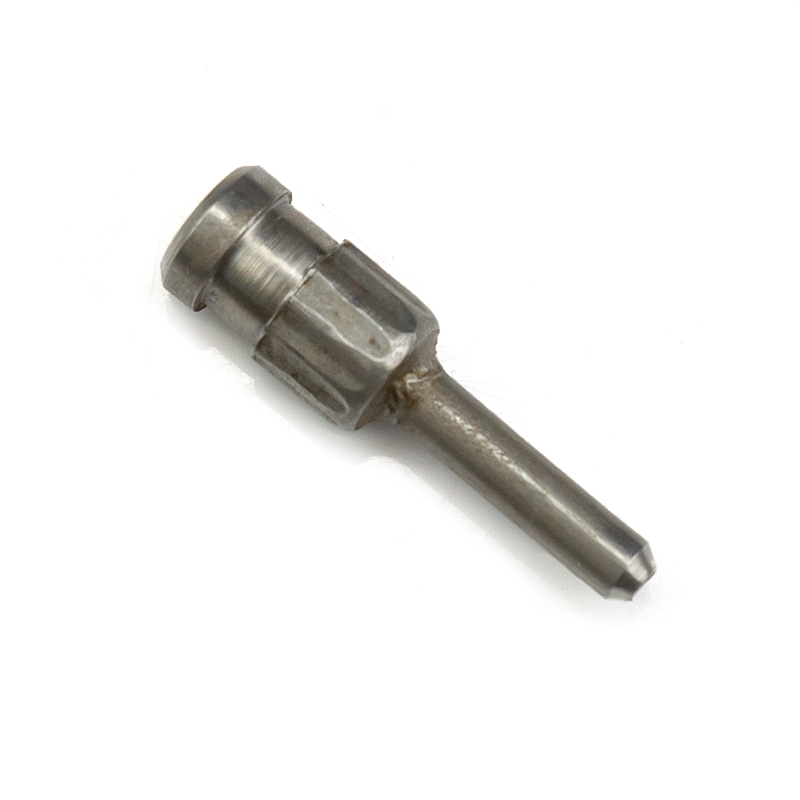

Blind hole internal thread design:The rear end is equipped with a certain depth of internal threaded holes, which can be combined with bolts to achieve rapid locking and disassembly of the components.

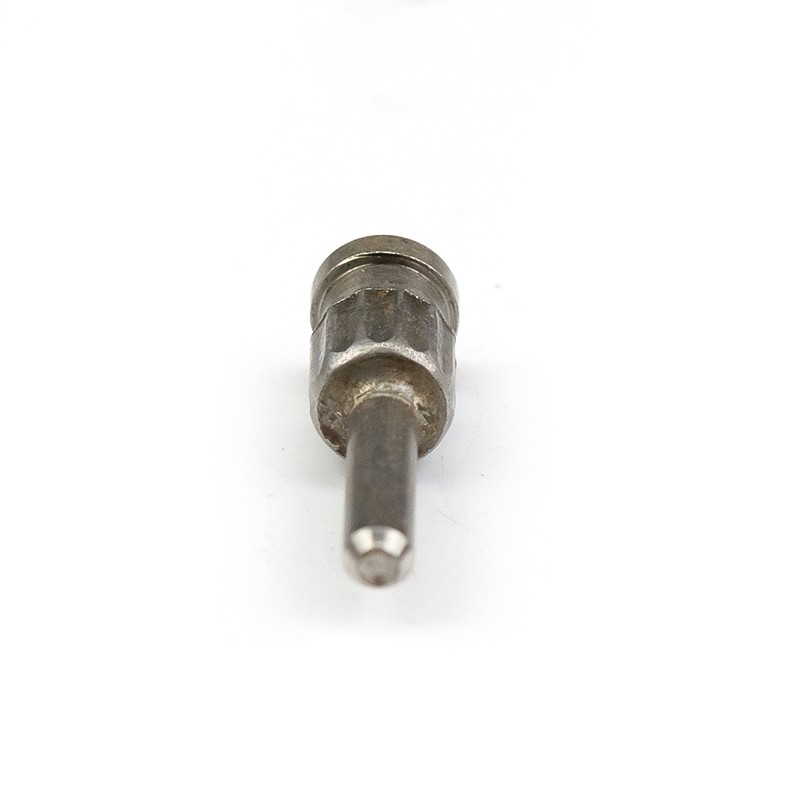

Front end guiding rounded corner:The end of the pin head is rounded, which facilitates insertion into the positioning hole and reduces assembly scratches.

Cold work hardened surface:The forming process creates a hardened layer, increasing the surface hardness and enhancing the wear resistance.

1. Integrated positioning and connection
The traditional solution requires separate installation of positioning pins and threaded sleeves. This product integrates the dual functions into a single piece, reducing the number of parts by 50% and simplifying BOM management and assembly processes.
2. Press-fit without welding process
The knurled section is installed by interference fit, without the need for spot welding or adhesive bonding. This avoids the risk of thermal deformation, and is particularly suitable for aluminum alloys and thin-walled sheet metal substrates with high dimensional accuracy requirements.
3. Repeatability of disassembly and assembly
The threaded end supports multiple bolt disassembly and assembly, while the press-fit section remains stable and does not loosen, solving the problem of traditional press-bolt nuts being prone to detachment during repeated disassembly.
4. Axiality guarantee
The integrated molding ensures that the axis of the positioning pin is coaxial with the axis of the threaded hole, with an axial deviation of ≤ 0.05mm, meeting the position accuracy requirements for precise assembly.
5. Blind end anti-leakage design
The bottom of the internal thread is a blind hole structure, which can effectively prevent liquids or dust from entering the equipment from the threaded end, improving the protection level.

Sheet metal chassis: Hinge positioning and locking points for the doors of server cabinets and distribution boxes.

Automotive parts: Positioning installation brackets for interior panels and instrument panels, as well as wire harness fixation bases.

Medical devices: Precise positioning and tool-free quick-release connection for equipment shells.

Electronic heat sinks: Positioning pins and screw locks for heat dissipation modules, ensuring a flat and smooth fit.

Automation equipment: Positioning reference for tooling fixtures and sensor installation positions. Aerospace: Lightweight positioning and fastening solutions for interior panels and inspection ports.
