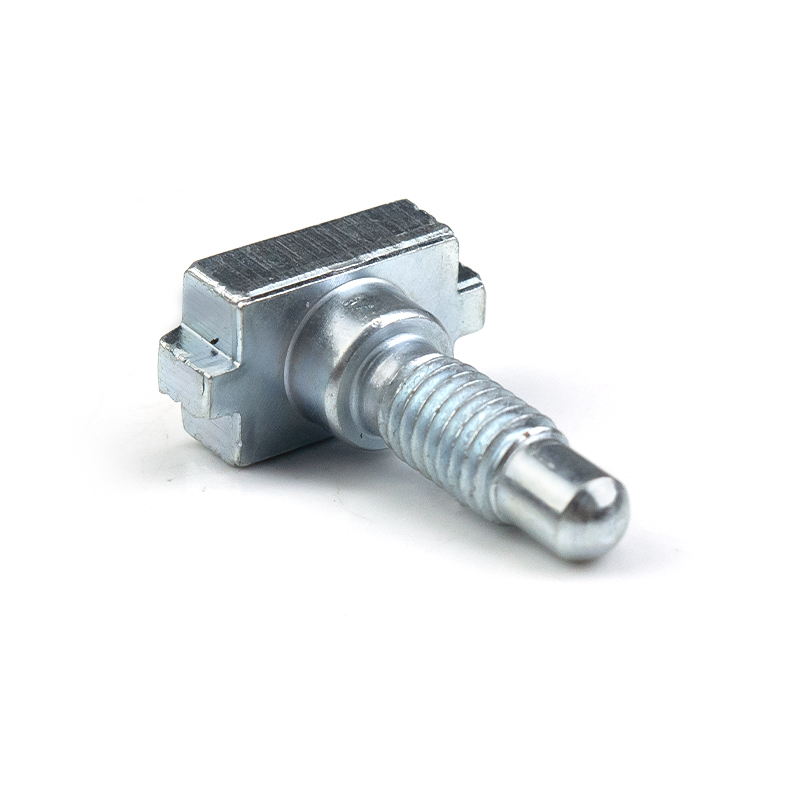

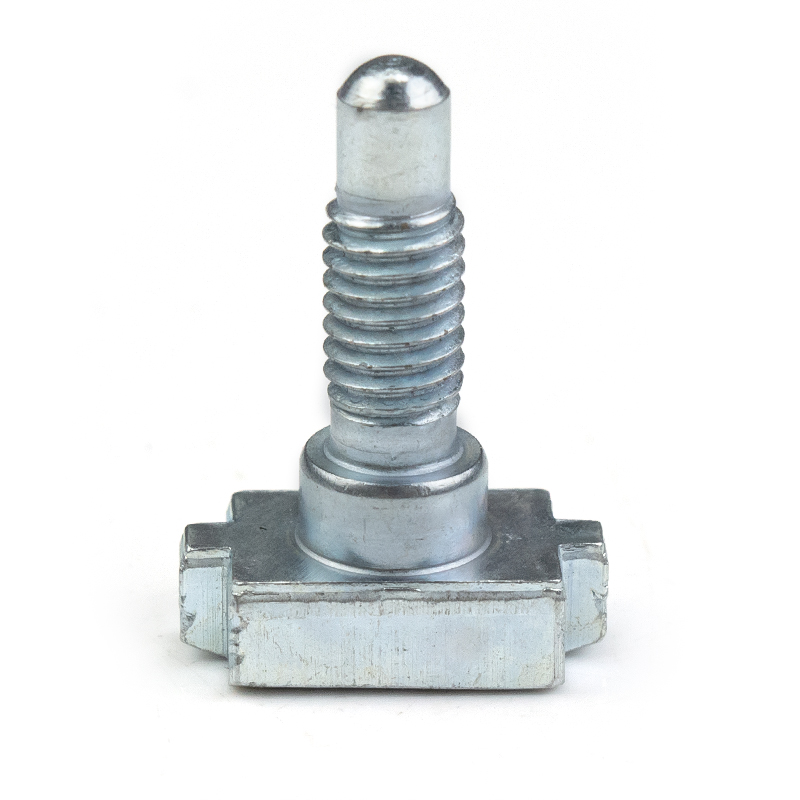

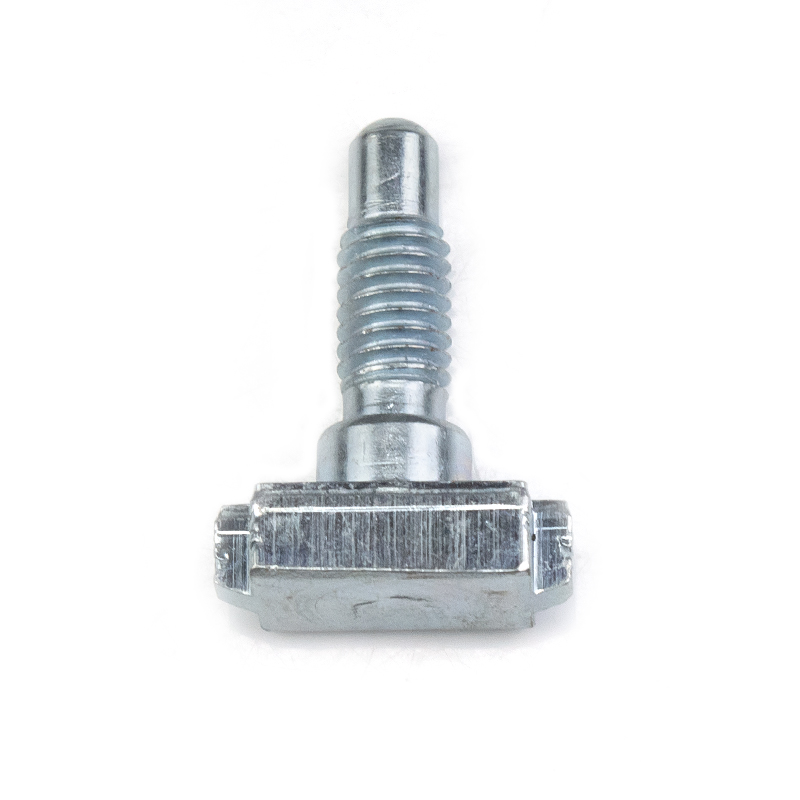

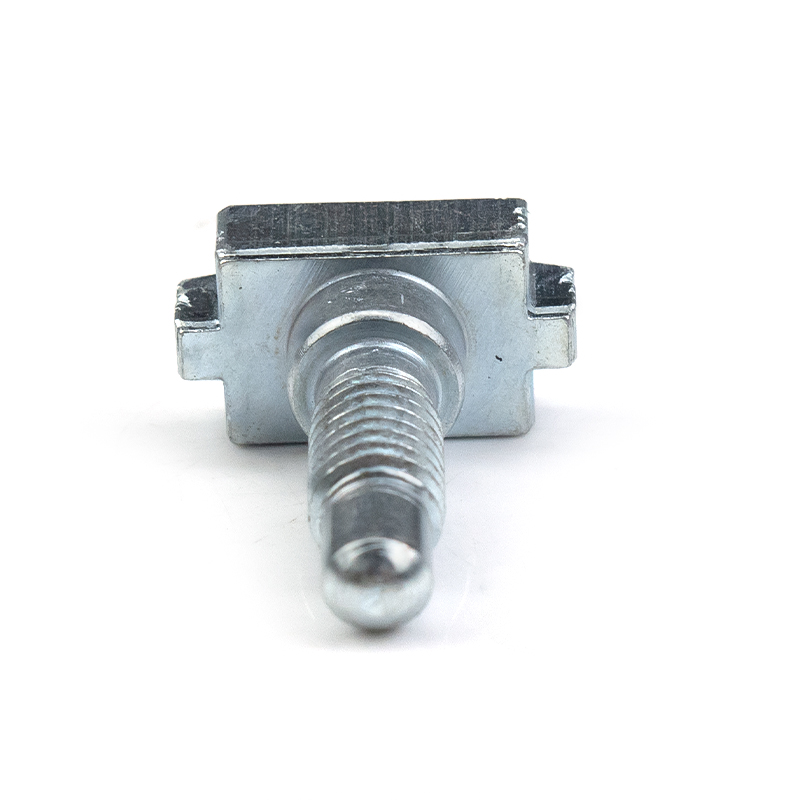

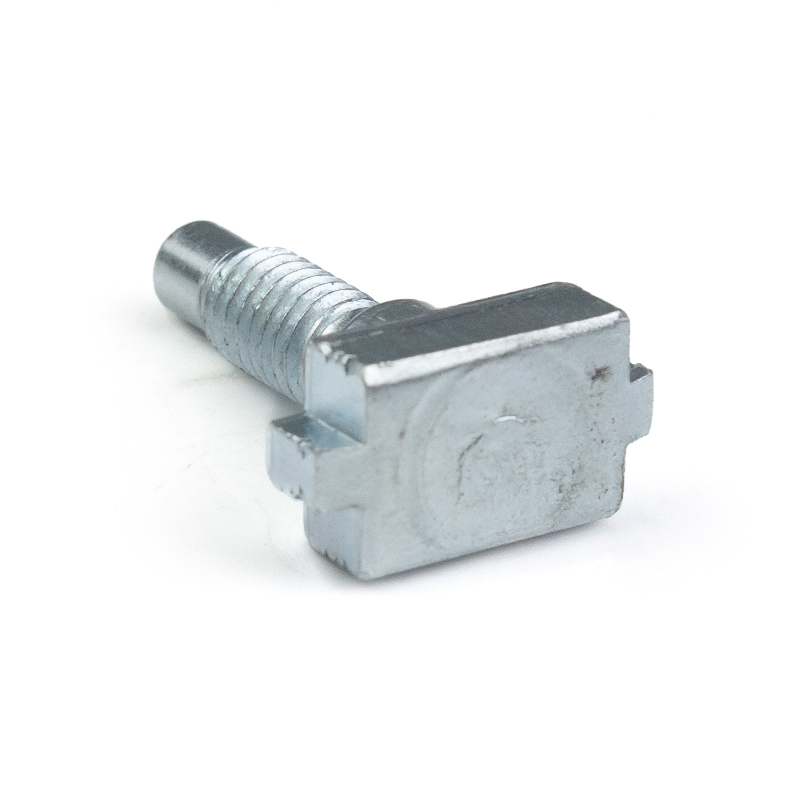

T-shaped slider anti-detachment base
The bottom is in the shape of an inverted T, and the width of the head precisely matches the width of the aluminum profile groove. It can be vertically inserted into the groove, rotated 90 degrees for locking, or directly slid into any position in the slot. The thickness of the T-shaped head has been optimized to ensure smooth sliding within the groove without tipping or falling off, without the need for additional anti-detachment pins.
Stepwise optical rod transition section
Below the thread is a precisely machined smooth cylindrical section, with a diameter larger than the outer diameter of the thread, which can serve as a positioning reference for shaft sleeves, bearings or connection plates, and can also be used as a stop block for adjusting the spacing, avoiding the thread being subjected to shear force.
Fine-thread locking section
The upper part adopts a fine-thread design with a small pitch and a low helix angle, providing better self-locking performance than coarse-threaded ones. It is not prone to loosening under vibration conditions. The thread length is moderate, balancing connection strength and adjustment range.
Hemispherical guiding head
At the end of the thread, there is a precisely machined spherical head, facilitating alignment with the nut hole or plastic snap ring, enabling blind installation and positioning, and eliminating the risk of scratches caused by sharp ends, thereby enhancing operational safety.
Multi-segment coaxiality guarantee
The T-shaped head, optical rod section, and thread section are processed through one-time clamping or precision mold forming. The coaxiality of each section is ≤ 0.1 millimeter, ensuring uniform force distribution and no uneven loading after assembly.

Integrated sliding positioning
Integrating the functions of traditional T-type bolts and positioning pins, one piece can establish sliding guides and fixed anchor points on aluminum profiles, eliminating the need to install sliders and bolts separately. The assembly efficiency is increased by more than 50%.
Load-bearing threads without force
The stepped design enables the external load to be mainly borne by the threaded section, while the threads only provide axial locking force. This avoids thread shear failure, resulting in significantly improved bearing capacity and service life.
Quick alignment installation
The hemispherical head has self-centering properties. When aligning with the mating hole, no precise alignment is required. A slight shake can be used to insert it. This is particularly suitable for blind assembly scenarios where visibility is limited or space is restricted.
Anti-loosening self-locking design
The fine-threaded screws are combined with the friction coefficient of the galvanized surface. Under normal preload, they can resist vibration loosening. When necessary, a nylon locking nut or spring washer can be used to achieve dual anti-loosening.
Flexible profile adaptation
The T-head size can be customized according to different profile slot widths of European standards such as 20 series, 30 series, 40 series, and 45 series. It can also be adapted to Chinese standards or special non-standard aluminum profiles, with strong versatility.

Equipment safety protection
Installation of movable protective covers and safety fences for CNC machines and industrial robots, sliding covers guiding the opening and closing of the body in the profile slot, bolted locking positions for easy adjustment of the opening size.
Assembly line components
Quick installation of side guide rails, guard edges, and supports for belt conveyors and roller lines, sliding adjustment positions along the channel to meet the conveying requirements of different-sized products.
Detection and measurement devices
Sensor brackets for three-coordinate measuring machines and visual inspection equipment, base of fixtures, using the optical rod section as a precise positioning pin to ensure the repeatability of the detection.
Assembly fixture system
Tooling and fixtures for electronic products, modular assembly of PCB turnover racks, T-shaped sliders for quick disassembly and position adjustment to adapt to multi-variety and small-batch production.
Exhibition and display equipment
Exhibition board supports for exhibition setups, sliding rails for the lighting suspension system, manual sliding adjustment without tools to improve exhibition efficiency.
New energy equipment
Walking mechanism for photovoltaic component cleaning equipment, internal layer plates of energy storage cabinets, corrosion-resistant galvanized layer to adapt to outdoor environments.
