PRODUCT
Material: Stainless steel 316L
Finish: Plain
Standard: DIN933
Certification: ISO9001
MOQ:1000PCS
Samples: Free
Place of Origin: Zhejiang China
Product Details
| Specification | |
|
Commodity name |

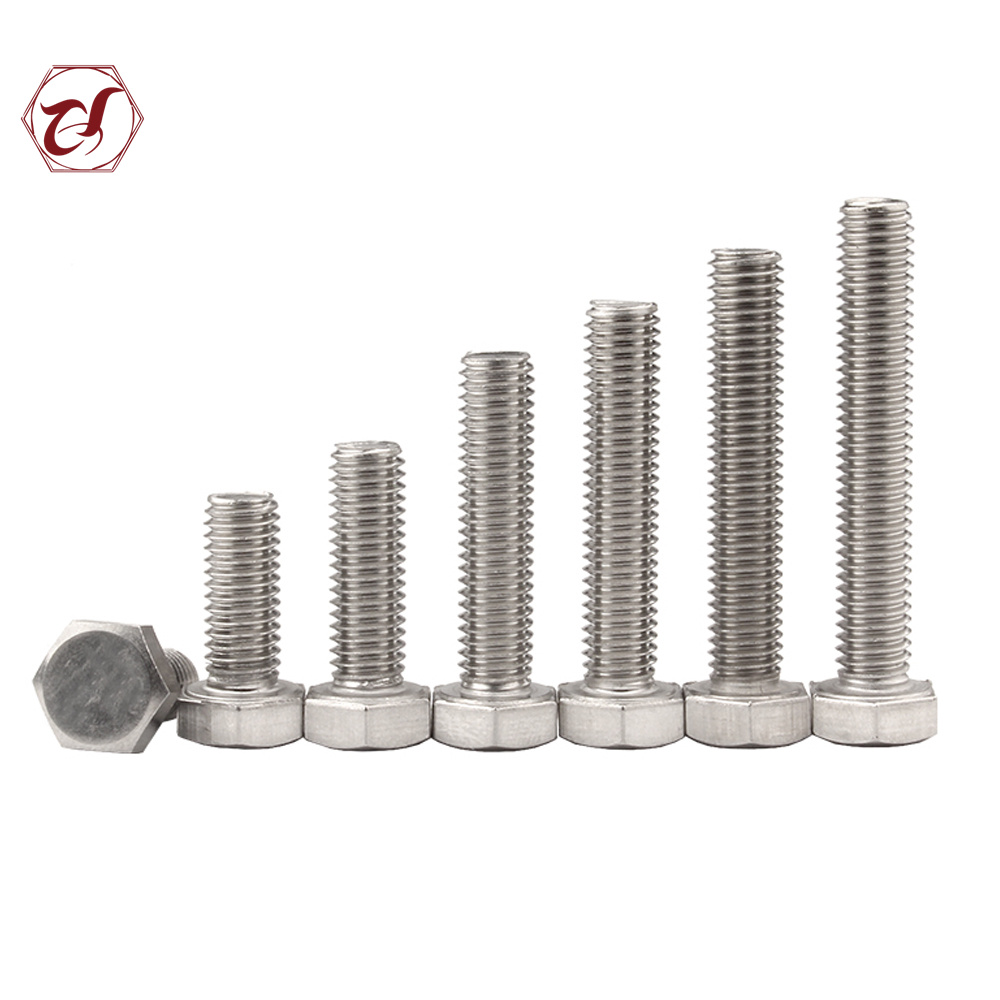

Stainless Steel 316L Full Thread Hex Bolt DIN933 M6 M8 M10 M12 |
|
Brand name |
GOSHEN |
|
Main Standard |
DIN933 |
|
Material |
Stainless Steel 316L |
|
Surface |
Plain Finish/ Self color |
|
Size |
Different size available ( M3-M48) |
|
M.O.Q |
10000pcs |
|
Packing |
Bulk packed(20-25kg)/ Small box then on pallet or according to customer’s requirements |
|
Delivery time |
30-35 days after the order confirmation |
|
Payment term |
T/T |
|
Business type |
Manufacturer, trading |
|
Certifications |
ISO9001,CE, SGS, API |
|
Advantage |
1. Competitive price; 2. OEM service available |
|
Notes |
Special specifications and marks can be made according to customers requirements; |
|
Main products |
bolts, screws, nuts, thread studs, anchors, lifting products, steel pipe, reducer, plate flange, WN flange |
| 316L Chemical component | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | Mo | P≤ | Cr | Ni | S |
| 0.03 | 2.0 | 1.0 | 2.0-3.0 | 0.045 | 16.0-18.0 | 10-14 | 0.03 | |
| 316L Mechanical property | ||||
| σb≥ | σ0.2≥ | δ5 (%)≥ | ψ (%)≥ | HB[N(kgf/mm2)] |
| 480(Mpa) | 177(Mpa) | 40% | 60 | ≤187HB;≤90HRB;≤200HV |
| DIN933 | |||||
| Screw Thread d | Pitch P | k | s | ||
| max | min | max | min | ||
| M5 | 0.8 | 3.74 | 3.26 | 8 | 7.64 |
| M6 | 1 | 4.42 | 3.76 | 10 | 9.64 |
| M7 | 1 | 5.04 | 4.56 | 11 | 10.57 |
| M8 | 1.25 | 5.54 | 5.06 | 13 | 12.57 |
| M10 | 1.5 | 6.69 | 6.11 | 17 | 16.57 |
| M12 | 1.75 | 7.79 | 7.21 | 19 | 18.48 |
| M14 | 2 | 9.09 | 8.51 | 22 | 21.16 |
| M16 | 2 | 10.29 | 7.91 | 24 | 23.16 |
| M18 | 2.5 | 11.85 | 11.15 | 27 | 26.15 |
| M20 | 2.5 | 12.85 | 12.15 | 30 | 29.16 |
| M22 | 2.5 | 14.35 | 13.65 | 32 | 31 |
| M24 | 3 | 15.35 | 14.65 | 36 | 35 |
| M27 | 3 | 16.65 | 17.35 | 41 | 40 |
| M30 | 3.5 | 19.12 | 18.28 | 46 | 45 |
| M33 | 3.5 | 21.42 | 20.58 | 50 | 49 |
| M36 | 4 | 22.92 | 22.08 | 55 | 53.8 |
