Product
Stainless Steel 316 Carriage Bolt
Material: Stainless steel 316
Finish: Plain
Standard: DIN603
Certification: ISO9001
MOQ:1000PCS
Samples: Free
Place of Origin: Zhejiang China
Product Details

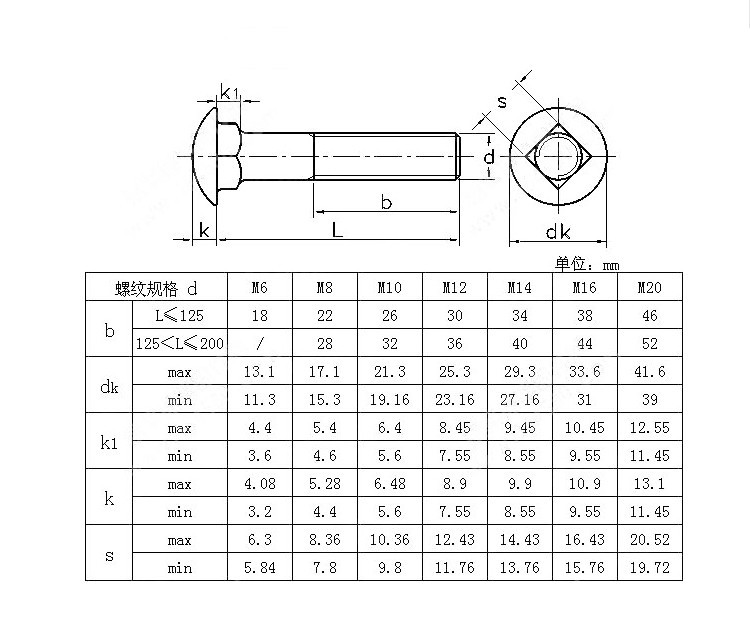

ANSIB18.5 or DIN603 316 Mushroom Head Square Neck Bolt
Carriage bolt：These are also known as coach bolts, round head square neck bolts, shaker screen bolts and carriage screws. The square shoulder of a carriage bolt stops it from spinning as it is screwed into the surface of a material. Once you seat the bolt through the hole, it is the job of the nut and washer to pull the bolt into the material tightly.
| Jiaxing Goshen Hardware Co.Ltd | ||||||||
| Name | Carriage bolt | Material | Stainless Steel 316 | |||||
| Standard | ANSI/SIME B18.5 or DIN603 | Surface | Plain | |||||
| Size | 1/4'' - 1/2'' , M5 - M12 | Package | Standard marine packaging | |||||
| Stock | Regualar Have In Stock | Head Mark | Can be Customized By Buyer | |||||
| Export Region | Europe,North America,Middle East and More other | |||||||
| SS316 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo |
| 0.08 | 2.00 | 0.045 | 0.030 | 1 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 | |
| 316 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
