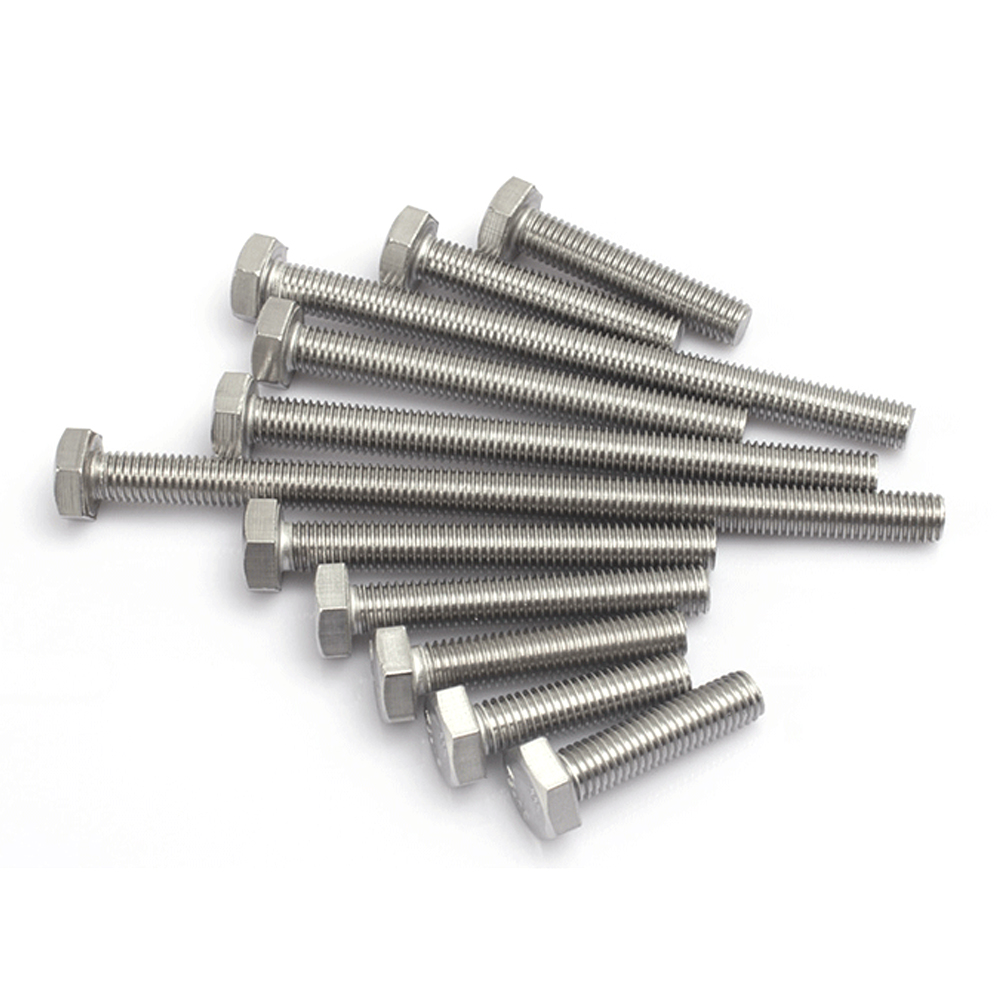

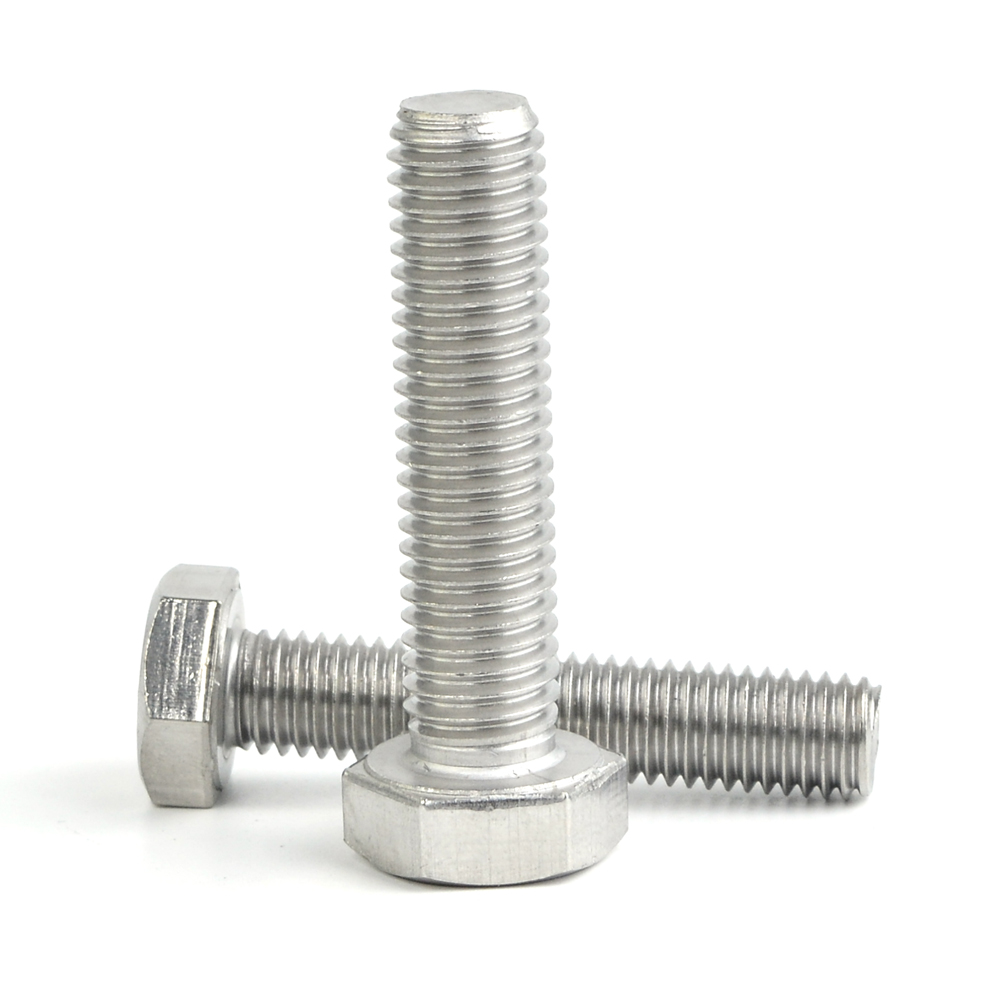

Stainless Steel a2-70 ss304 ss316 full thread hex head bolt

Standard: DIN933, which has been withdrawn and superseded by ISO4017, but off-the-shelf parts are generally still manufactured to the older specification.
Thread: Metric thread, with thread diameter ranging from M1.6 to M52.

SS2205 Chemical Composition(%)
Grade	C≤	Mn≤	P≤	S≤	Si≤	Ni	Cr	Mo	N
	0.030	2.0	0.03	0.02	1.0	4.5-6.5	21-23	2.5-3.5	0.08-0.2

S32750 Chemical Composition(%)
Grade	C≤	Mn≤	Si≤	S≤	P≤	Cr	Ni	Mo	Cu≤	N
	0.03	1.2	0.8	0.02	0.035	24.0-26.0	6.0-8.0	3.0-5.0	0.5	0.24-0.32

DIN933
Screw Thread d	Pitch P	k		s
Screw Thread d	Pitch P	max	min	max	min
M5	0.8	3.74	3.26	8	7.64
M6	1	4.42	3.76	10	9.64
M7	1	5.04	4.56	11	10.57
M8	1.25	5.54	5.06	13	12.57
M10	1.5	6.69	6.11	17	16.57
M12	1.75	7.79	7.21	19	18.48
M14	2	9.09	8.51	22	21.16
M16	2	10.29	7.91	24	23.16
M18	2.5	11.85	11.15	27	26.15
M20	2.5	12.85	12.15	30	29.16
M22	2.5	14.35	13.65	32	31
M24	3	15.35	14.65	36	35
M27	3	16.65	17.35	41	40
M30	3.5	19.12	18.28	46	45
M33	3.5	21.42	20.58	50	49
M36	4	22.92	22.08	55	53.8

Head Dimensions: DIN933 specifies the head dimensions of hex head bolts. For example, for an M30 DIN933 hex bolt, the head width across flat is 45mm, and the head height is 12.72mm.
Length: Available in a variety of lengths to meet different assembly requirements.

Materials: Made of carbon steel, alloy steel, stainless steel, non-ferrous metals, etc. Stainless steel is often used for its corrosion resistance and durability.
Surface Treatment: Common surface treatments include hot-dip galvanizing, zinc plating, black oxide, etc. Hot-dip galvanizing provides excellent corrosion resistance and is suitable for use in harsh environments.

Grade of Fasteners: For carbon steel and alloy steel bolts, different strength grades are available, such as grade 8.8 and grade 10.9. Grade 8.8 bolts have a minimum tensile strength of 800 MPa and a minimum yield strength of 640 MPa. Grade 10.9 bolts have a minimum tensile strength of 1000 MPa and a minimum yield strength of 900 MPa.
Thread Tolerance: The thread tolerance of DIN933 hex bolts is usually 6g, which ensures good interchangeability and reliability in assembly.
