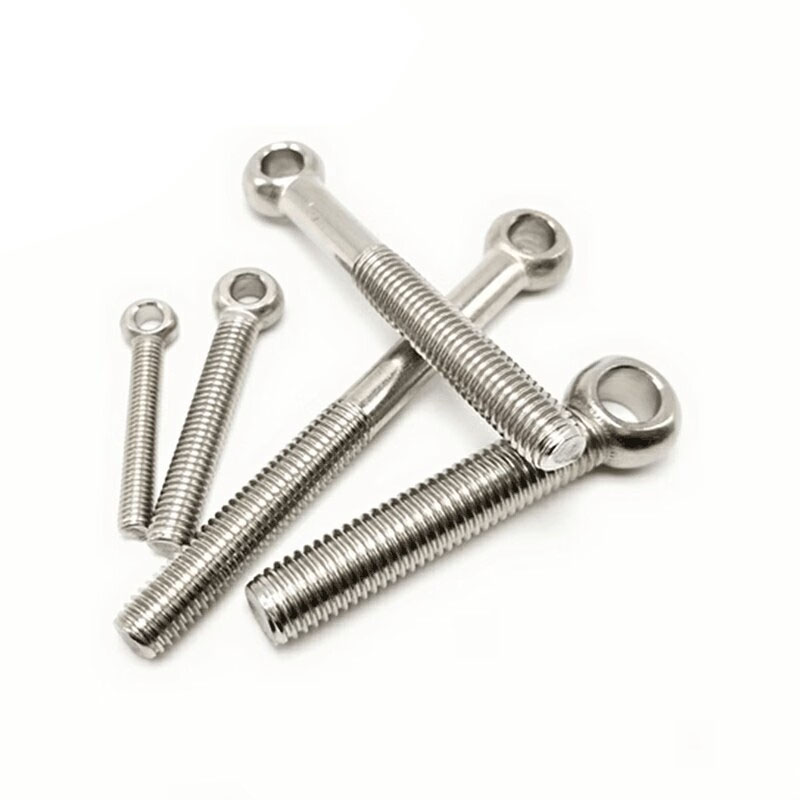

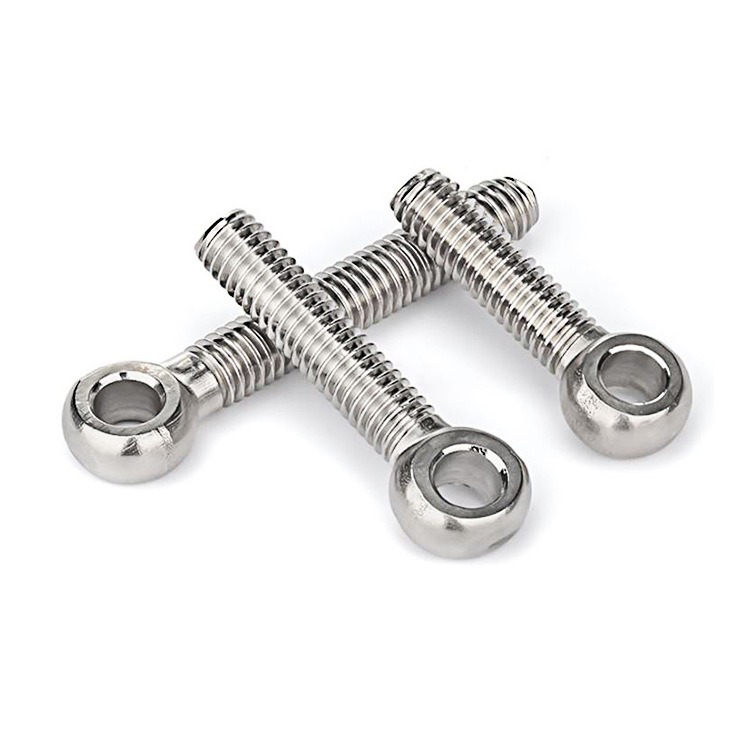

Stainless Steel Full Thread Rigging Lifting Eye Bolt
Material: Stainless steel 304
Finish: Plain
Standard: DIN580
Certification: ISO9001
MOQ:1000PCS
Samples: Free
Place of Origin: Zhejiang China
Product Details
| Commodity Name: | stainless steel full thread rigging lifting eye bolt |
| 2.Standard: | DIN,ANSI |
| 3.Material: | SUS304,SUS316,A2-70,A4-70 |
| 4.Grade: | A2-70,A4-80etc |
| 5.Surface Finish: | Natural color |
| 6.Size: | M3-M52 |
| 7.Supply Ability: | 500MT per month |
| 8.Certificate: | ISO9001:2008; SGS,CE, |
| 9.Packing: | 20-25Kg per Carbon, 36-64Carbon/Pallet or according to client’s requirement |
| 10.Delivery : | 20days per container for the usual size |
| 304 Chemical Composition(%) | ||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8.0-10.5 | 0.1 | |
| 304 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
| 316 Chemical Composition(%) | ||||||||||
| Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanical property | |||
| σb≥ | σ0.2≥ | δ5 (%)≥ | Hardness(HB)(kgf/mm2)] |
| 520(Mpa) | 205(Mpa) | 40% | ≤187 HRB≤90 HV ≤200 |
| DIN444 | ||||||
| Screw Thread d | Pitch P | S | d2 | Sd | ||
| min | max | min | max | |||
| M4 | 0.70 | 4.75 | 4.93 | 3.160 | 3.060 | 8.000 |
| M5 | 0.80 | 5.75 | 5.93 | 4.070 | 4.190 | 10.000 |
| M6 | 1.00 | 7.70 | 7.92 | 5.070 | 5.190 | 12.000 |
| M8 | 1.25 | 9.70 | 9.92 | 6.070 | 6.190 | 14.000 |
| M10 | 1.50 | 11.635 | 11.905 | 8.080 | 8.230 | 18.000 |
| M12 | 1.75 | 13.635 | 13.905 | 10.080 | 10.230 | 20.000 |
| M16 | 2.00 | 17.635 | 17.905 | 12.095 | 12.275 | 28.000 |
| M20 | 2.50 | 21.56 | 21.89 | 16.095 | 16.275 | 34.000 |
| M24 | 3.000 | 25.560 | 25.890 | 20.110 | 20.320 | 42.000 |
| M30 | 3.500 | 33.500 | 33.800 | 25.110 | 25.320 | 52.000 |
| M36 | 4.000 | 39.480 | 39.870 | 30.100 | 30.320 | 64.000 |
