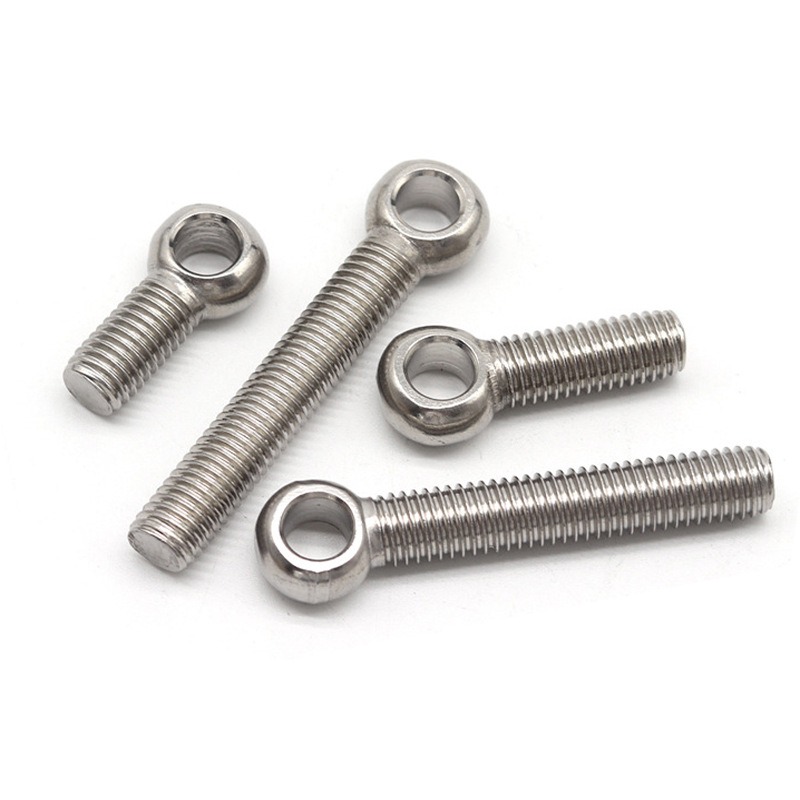

Stainless Steel A2-70 SS304 Full Thread Lifting Eye Bolt M8 M12 EyeBolt

• Standard: DIN 580 / ASME B18.15 (forged eye bolt)
• Material Options: A2-70 (AISI 304) or A4-80 (AISI 316) stainless steel
• Thread Range: M6 – M30; lengths 25 mm – 300 mm
• Eye Inside Diameter: 1.5 × thread diameter (e.g., M12 = 18 mm)
• Thread Type: Metric coarse 6g; UNC/UNF, fine pitch, or left-hand on request
• Finish: Plain self-colour (passivated) or mirror-polished

Commodity Name:	Stainless Steel Full Thread Lifting Eye Bolt M8 M12
2.Standard:	DIN,ANSI
3.Material:	SUS304,SUS316,A2-70,A4-70
4.Grade:	A2-70,A4-80etc
5.Surface Finish:	plain
6.Size:	M6-M52
7.Supply Ability:	500MT per month
8.Certificate:	ISO9001:2008; SGS,CE,
9.Packing:	20-25Kg per Carbon, 36-64Carbon/Pallet or according to client’s requirement
10.Delivery :	20days per container for the usual size

304 Chemical Composition(%)
Grade	C≤	Mn≤	Si≤	S≤	P≤	Cr	Ni	N≤
	0.08	2	0.75	0.03	0.045	18.0-20.0	8.0-10.5	0.1

304 Mechanical property
σb≥	σ0.2≥	δ5 (%)≥	Hardness(HB)(kgf/mm2)]
520(Mpa)	205(Mpa)	40%	≤187 HRB≤90 HV ≤200

316 Chemical Composition(%)
Grade	C≤	Mn≤	Si≤	S≤	P≤	Cr	Ni	Cu	MO	N
	0.017	0.98	0.25	0.0016	0.0414	16.23	10.08	0.32	2.06	0.037

316 Mechanical property
σb≥	σ0.2≥	δ5 (%)≥	Hardness(HB)(kgf/mm2)]
520(Mpa)	205(Mpa)	40%	≤187 HRB≤90 HV ≤200

Packaging & Shipping

Standard export packing or According to customer's requirement

Our Services

1.We^,ll always be online whenever you look for us.

2..The customer is god, and we always focus on the customer's point of view

3.We produce your order strictly by your request. If the quality was not acceptable, we will refund to you.

FAQ

Q:What is your main products?

A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.

Q: What is your delivery time?

A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.

• Proof Load: A2-70 ≥ 450 MPa; A4-80 ≥ 600 MPa
• Salt-Spray Rating: A2 ≥ 500 h; A4 ≥ 1 000 h
• Working Temperature: –50 °C to +300 °C (non-magnetic at ambient)
• Seamless forged eye eliminates weld seams for maximum safety

• One-piece forged construction—no welds to fail under load
• Laser-marked Working Load Limit (WLL) on every bolt
• Smooth eye surface prevents rope/cable abrasion
• Corrosion-free finish eliminates need for painting or coating maintenance

• Marine & Coastal: dock hardware, yacht rigging, ship maintenance lifts
• Food & Pharma: processing equipment, wash-down lifting lugs
• Architecture & Construction: façade suspension, safety-line anchors, catenary systems
• Renewable Energy: solar-array lifting points, wind-turbine service hoists
