Product

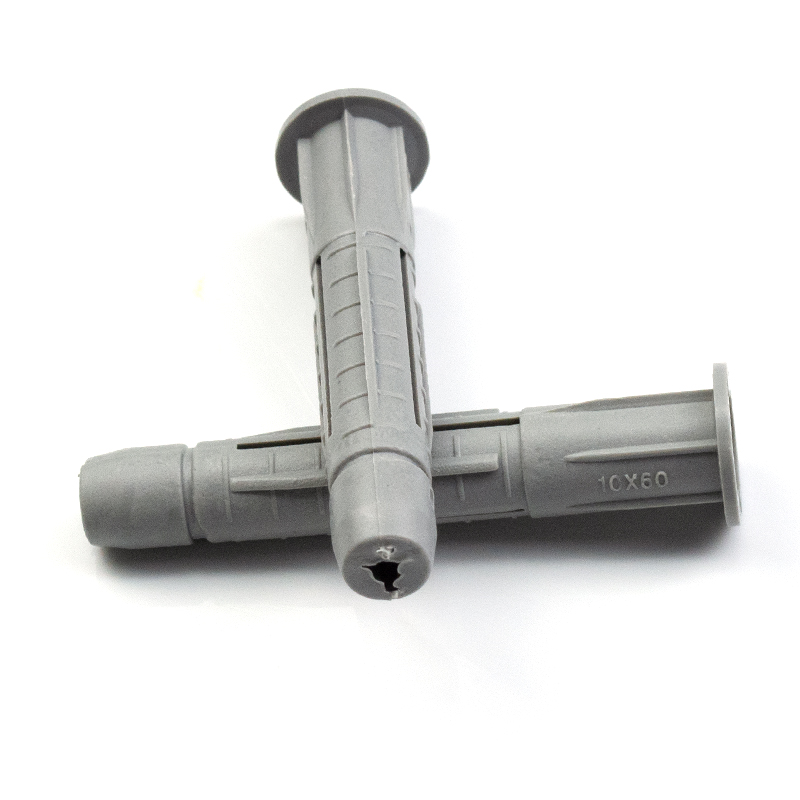

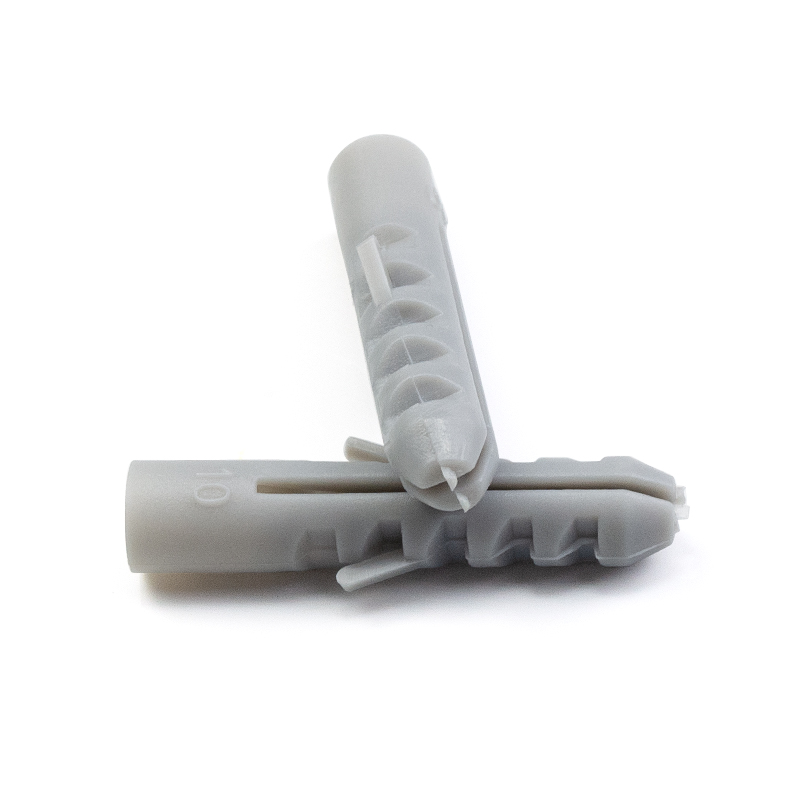

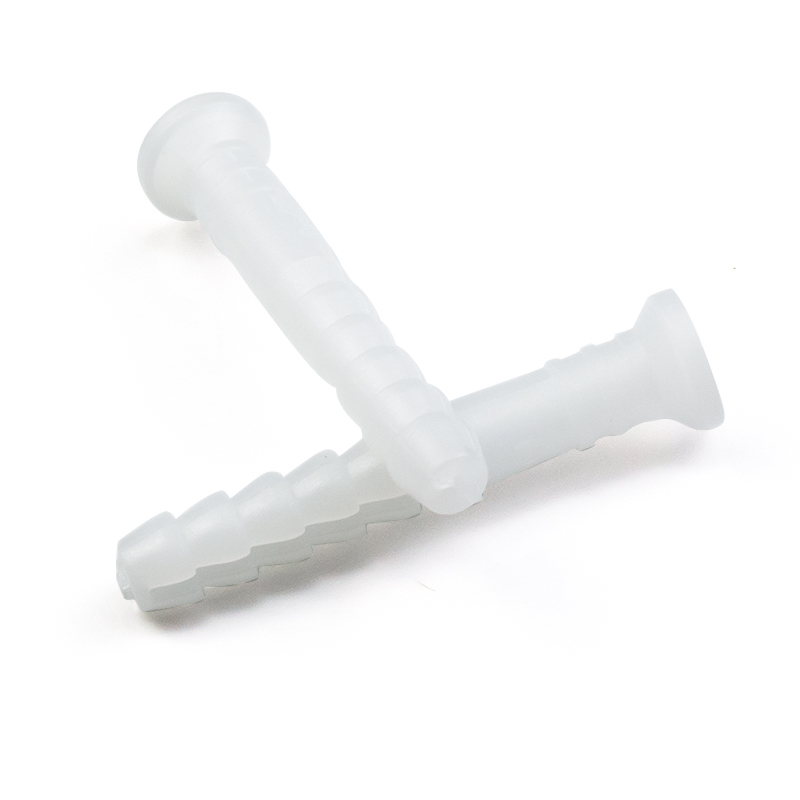

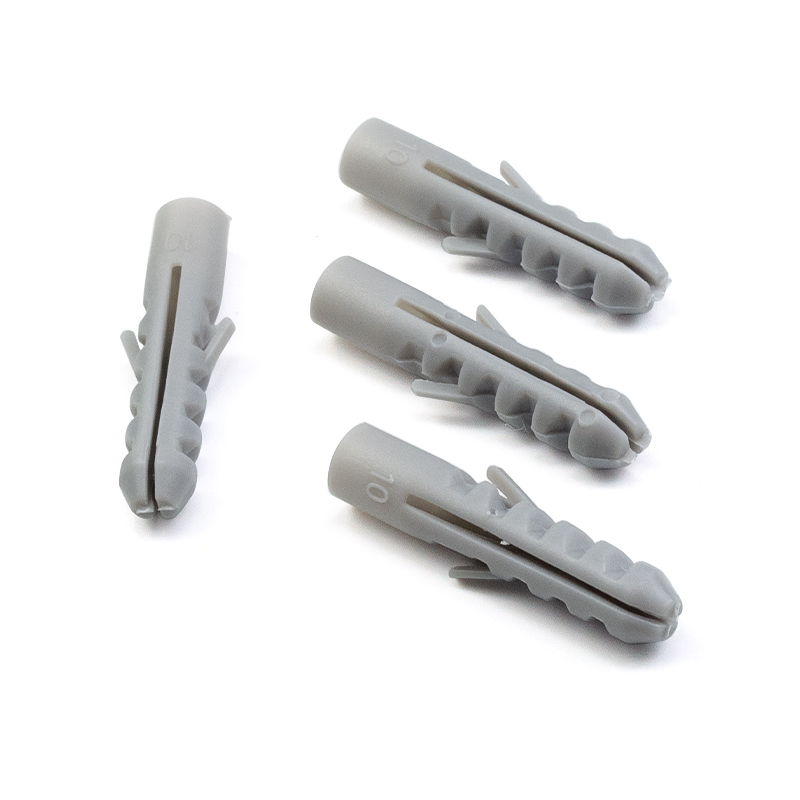

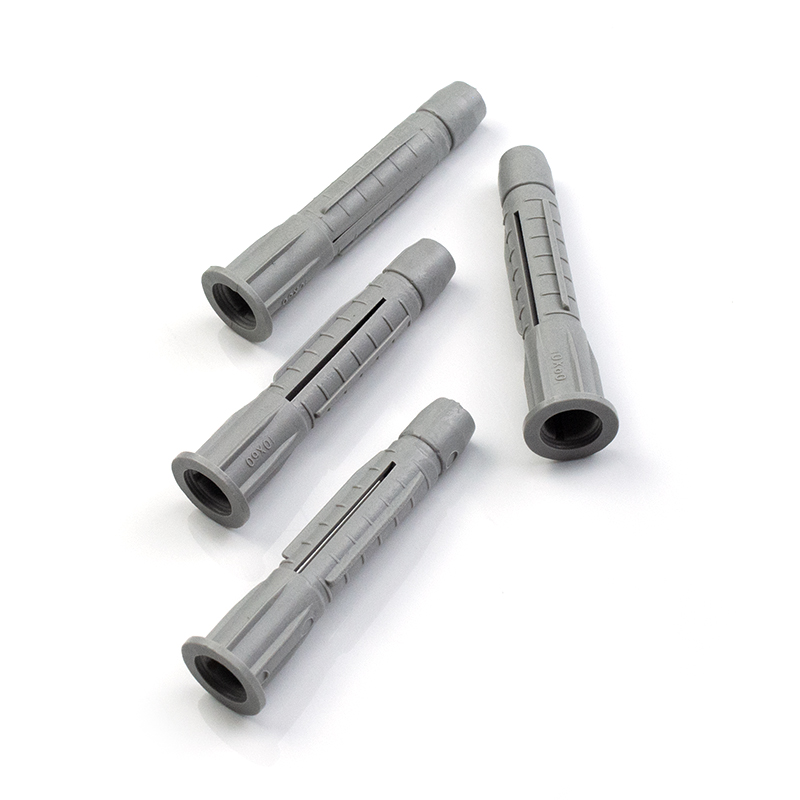

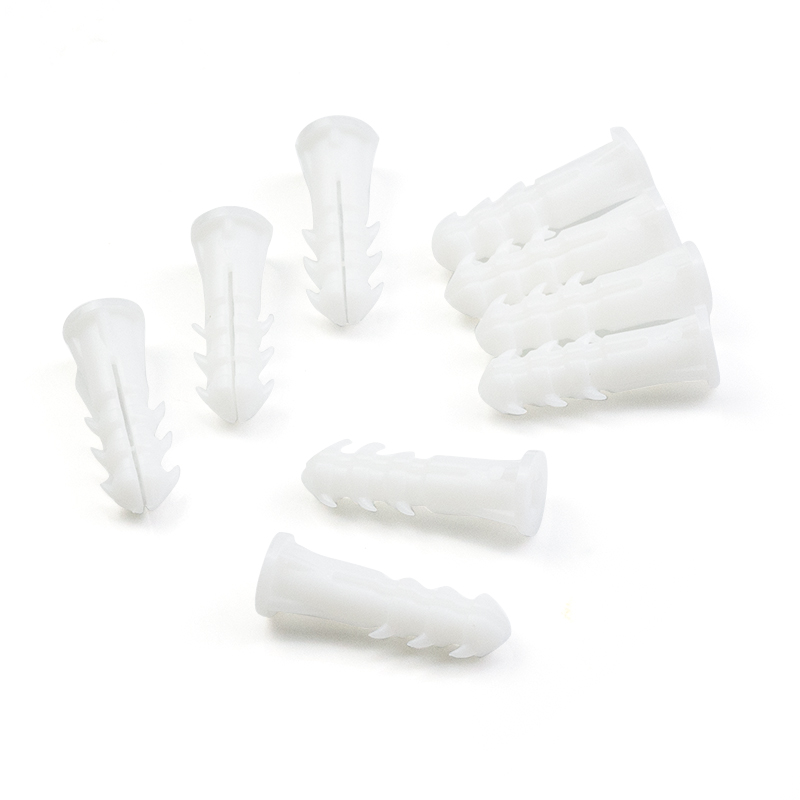

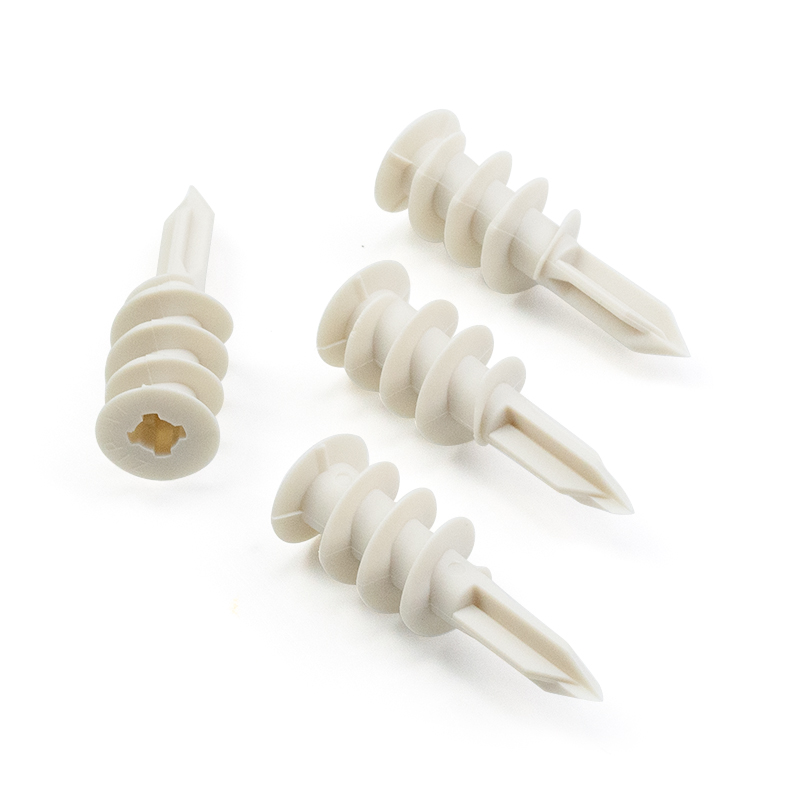

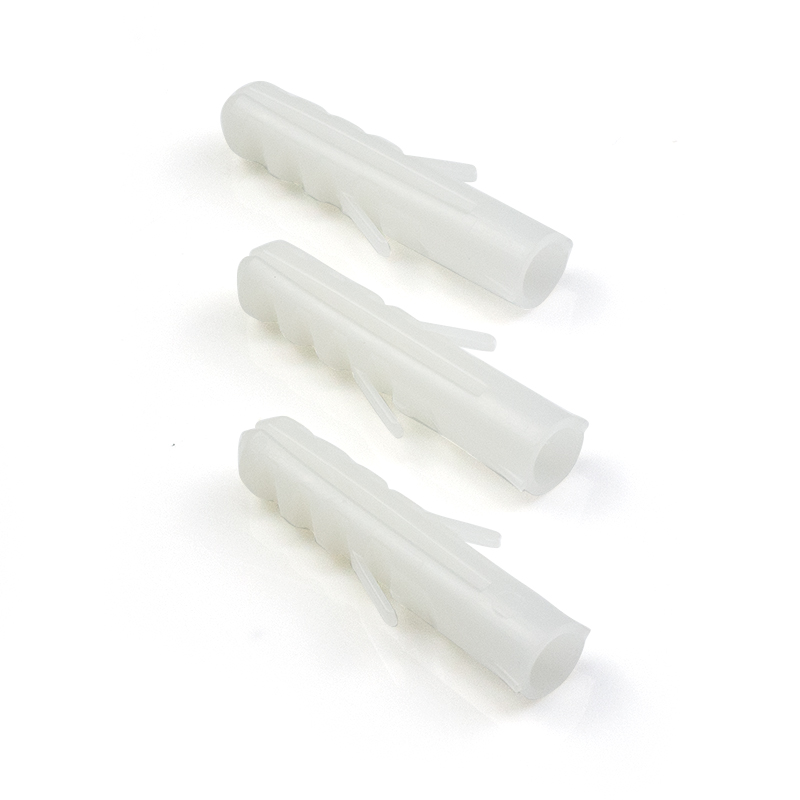

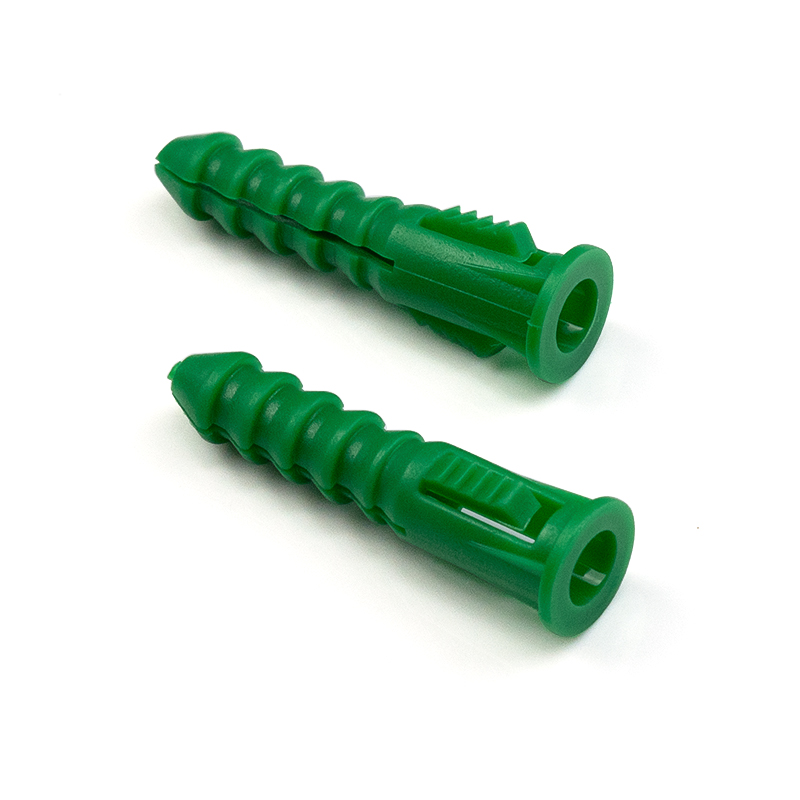

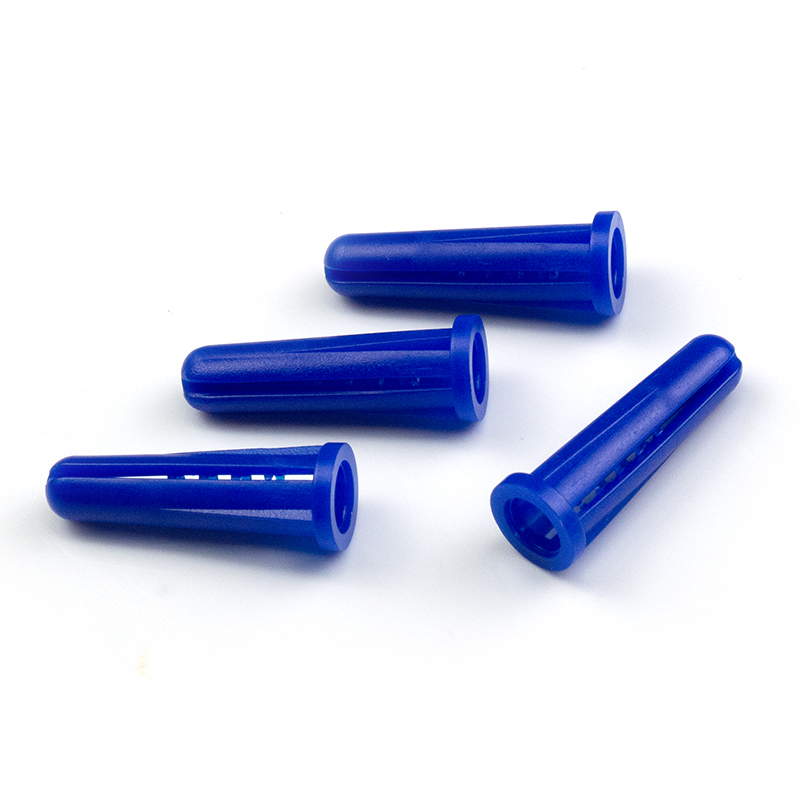

PE Plastic wall anchor Plug Screw Dowel Expansion Plastic Anchor DIN Standard PE Box Extruded Plastic Wall Anchor
Material: Plastic
MOQ:1000PCS
Samples: Free
Place of Origin: Zhejiang China
Product Details
Description:
| Name | PE Plastic wall anchor Plug Screw Dowel Expansion Plastic Anchor DIN Standard PE Box Extruded Plastic Wall Anchor |
| Place of Origin | Jiaxing, Zhejiang, China |
| Dimension | m6-m24 |
| Surfance | plain |
| Material | plastic |
| Standard | custom |
| Non-standards | OEM is available, according to drawing or samples |
| Samples | Samples are free. |
| Package | Pack the box first and put it in the carton, or according to customers' requirement. |
| Payment | T/T or L/C |
| THROUGH BOLT ANCHOR A2 Stainless steel./THROUGH BOLT ANCHOR A2 Stainless clip. | |||||||||
| SIZE | UNIT BOX | UNIT MASTER BOX | UNIT PALLET | HOLE DEPTH MIN.“F” | TORQUE(NM) | MIN.SUBSTRATE THICKNESS “hmin” | MAX.FIXTURE THICKNESS “tfit” | TENSION LOAD NON-CRACKED CONCRETE | AXIS LETTER |
| M6×45 | 200 | 1,200 | 43,200 | 40 | 7 | 100 | 1 | 306 | A |
| M6×60 | 200 | 1,200 | 43,200 | 55 | 7 | 100 | 2 | 488 | B |
| M6×80 | 200 | 1,200 | 43,200 | 55 | 7 | 100 | 22 | 488 | D |
| M6×120 | 100 | 600 | 21,600 | 55 | 7 | 100 | 62 | 488 | G |
| M6×140 | 100 | 600 | 21,600 | 55 | 7 | 100 | 82 | 488 | I |
| M6×160 | 100 | 400 | 14,400 | 55 | 7 | 100 | 102 | 488 | J |
| M8×50 | 100 | 800 | 43,200 | 40 | 20 | 100 | 4 | 270 | A |
| M8×75 | 100 | 600 | 21,600 | 65 | 20 | 100 | 5 | 582 | C |
| M8×90 | 100 | 600 | 21,600 | 65 | 20 | 100 | 20 | 582 | E |
| M8×115 | 100 | 400 | 14,400 | 65 | 20 | 100 | 45 | 582 | G |
| M10×70 | 100 | 400 | 21,600 | 55 | 35 | 100 | 5 | 516 | C |
| M10×90 | 100 | 400 | 14,400 | 70 | 35 | 110 | 10 | 647 | D |
| M10×120 | 50 | 300 | 10,800 | 70 | 35 | 110 | 40 | 647 | G |
| M10×150 | 50 | 200 | 10,800 | 70 | 35 | 110 | 70 | 647 | I |
| M12×75 | 50 | 300 | 10,800 | 60 | 60 | 100 | 5 | 575 | C |
| M12×90 | 50 | 200 | 10,800 | 75 | 60 | 120 | 5 | 901 | D |
| M12×110 | 50 | 200 | 10,800 | 85 | 60 | 130 | 18 | 1,011 | F |
| M12×140 | 50 | 200 | 7,200 | 85 | 60 | 130 | 48 | 1,011 | I |
| M16×90 | 25 | 150 | 5,400 | 75 | 120 | 100 | 4 | 699 | D |
| M16×145 | 25 | 100 | 3,600 | 110 | 120 | 168 | 23 | 1,416 | I |
| M16×170 | 25 | 75 | 2,700 | 110 | 120 | 168 | 48 | 1,416 | K |
| M20×120 | 20 | 40 | 2,880 | 105 | 240 | 145 | 5 | 1,220 | G |
| M20×170 | 20 | 40 | 2,160 | 135 | 240 | 206 | 23 | 2,023 | K |
| M20×220 | 20 | 40 | 2,160 | 135 | 240 | 206 | 73 | 2,023 | O |
Packaging & Shipping
Standard export packing or According to customer's requirement
Our Services
1.We,ll always be online whenever you look for us.
2..The customer is god, and we always focus on the customer's point of view
3.We produce your order strictly by your request. If the quality was not acceptable, we will refund to you.
FAQ
Q:What is your main products?
A:Fasteners, Bolt, nut, screws, washer, threaded rod, anchors, self tapping screws, self driling screws, stainless steel plate, etc.
Q: What is your delivery time?
A:It depends on if we have stock or not, if we have stock goods, we can delivery within 2 days after receive the payment. And normally our production is in 20-30 days for one container (20-26 ton) products.
