Thread			M5	M6	(M7)	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36
d
P			0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4
a	Max		2.4	3	3	3.75	4.5	5.25	6	6	7.5	7.5	7.5	9	9	10.5	10.5	12
c	Min		0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
c	Max		0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
da	Max		5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4
dw	A	Min	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5	25.3	28.2	30	33.6	-	-	-	-
dw	B	Min	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1
e	A	Min	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75	30.14	33.53	35.72	39.98	-	-	-	-
e	B	Min	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79
k	Metric		3.5	4	4.8	5.3	6.4	7.5	8.8	10	11.5	12.5	14	15	17	18.7	21	22.5
	A	Min	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82	11.28	12.28	13.78	14.78	-	-	-	-
	A	Max	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18	11.72	12.72	14.22	15.22	-	-	-	-
	B	Min	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08
	B	Max	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92
k1	Min		2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5
r	Min		0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1
s	Max=Metric		8	10	11	13	17	19	22	24	27	30	32	36	41	46	50	55
	A	Min	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67	26.67	29.67	31.61	35.38	-	-	-	-
	B	Min	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16	26.15	29.16	31	35	40	45	49	53.8

A490 Type3

Chemical Composition(%)

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
≤0.75（Heat Analysis）	Min	0.2	0.4	-	-	0.45	0.2	0.2	0.15
≤0.75（Heat Analysis）	Max	0.53	-	0.035	0.04	-	-	0.6	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
＞0.75（Heat Analysis）	Min	0.3	0.4	-	-	0.45	0.2	0.2	0.15
＞0.75（Heat Analysis）	Max	0.53	-	0.035	0.04	-	-	0.6	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
≤0.75（Product	Min	0.19	0.37	-	-	0.42	0.17	0.17	0.14
≤0.75（Product	Max	0.55	-	0.04	0.045	-	-	0.63	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
＞0.75（Product Analysis）	Min	0.28	0.37	-	-	0.42	0.17	0.17	0.14
＞0.75（Product Analysis）	Max	0.55	-	0.04	0.045	-	-	0.63	-

Quality Assurance
•

100 % dimensional inspection thread gauges (Go / No-Go).
• Spectrometer material verification per lot.
• Salt-spray test 48–1,000 h depending on coating (ASTM B117).
• RoHS & REACH compliance certificates provided.
• Mill test certificate (MTC) EN 10204 3.1 available.

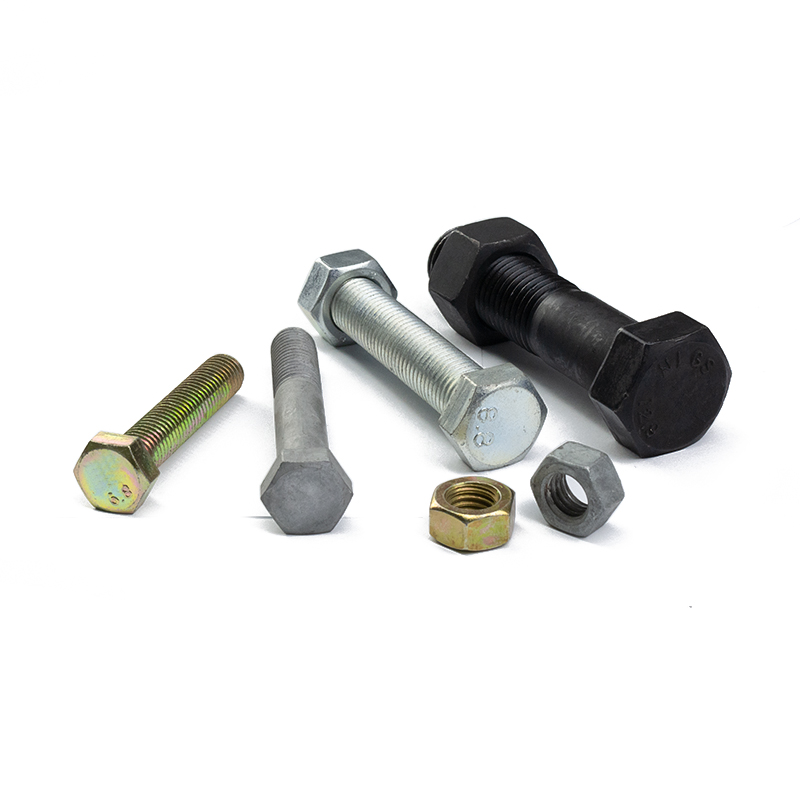

• Carbon steel: C1018–C1045 or equivalent low-/medium-carbon steel.
• Property class: Bolts 8.8 / 10.9 / 12.9; Nuts 8 / 10 / 12 (ISO) or Grade 5 / 8 / ASTM A563 (SAE).
• Optional surface-hardened threads for higher torque resistance.

• Plain (oiled) – for indoor / short-term applications.
• Zinc electro-plating: blue, yellow, or black passivation, 5–8 µm, meets ASTM B633.
• Hot-dip galvanized (HDG): 45–60 µm, ASTM A153.
• Dacromet / Geomet: 480–1000 h salt-spray resistance, RoHS compliant.
• Black oxide, phosphate, or customer-specified coatings available.

• Metric sizes: M5 – M64, lengths 10 mm – 500 mm per ISO 4014 / 4017 (bolts) & ISO 4032 (nuts).
• Imperial sizes: 1/4" – 2-1/2", lengths 1/2" – 20" per ASME B18.2.1 / B18.2.2.
• Thread: 6g (metric) / 2A (UNC/UNF) – standard right-hand; left-hand or fine-pitch on request.
• Partial or full threading as specified.
