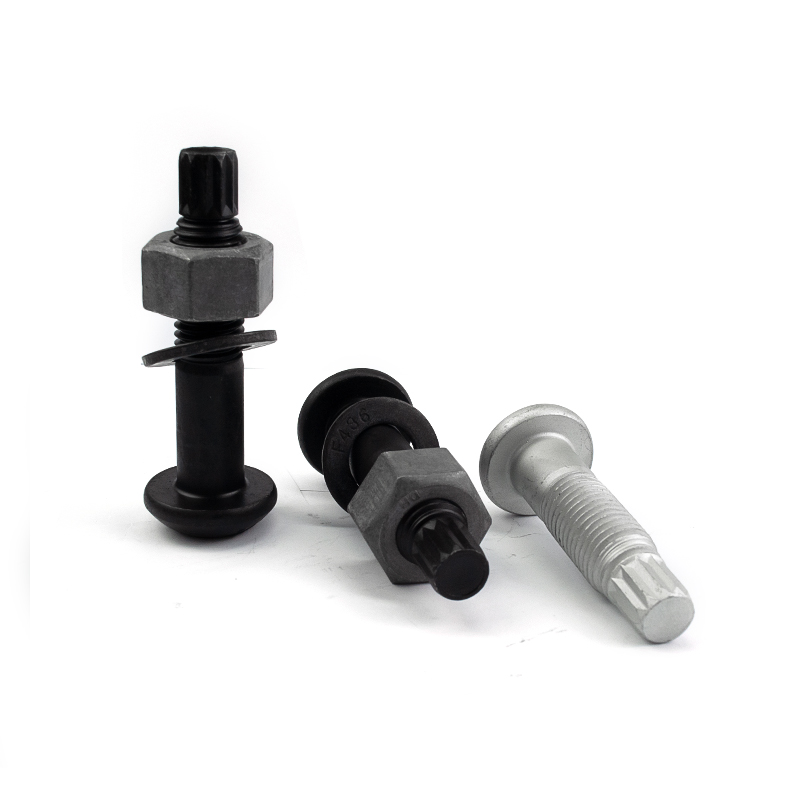

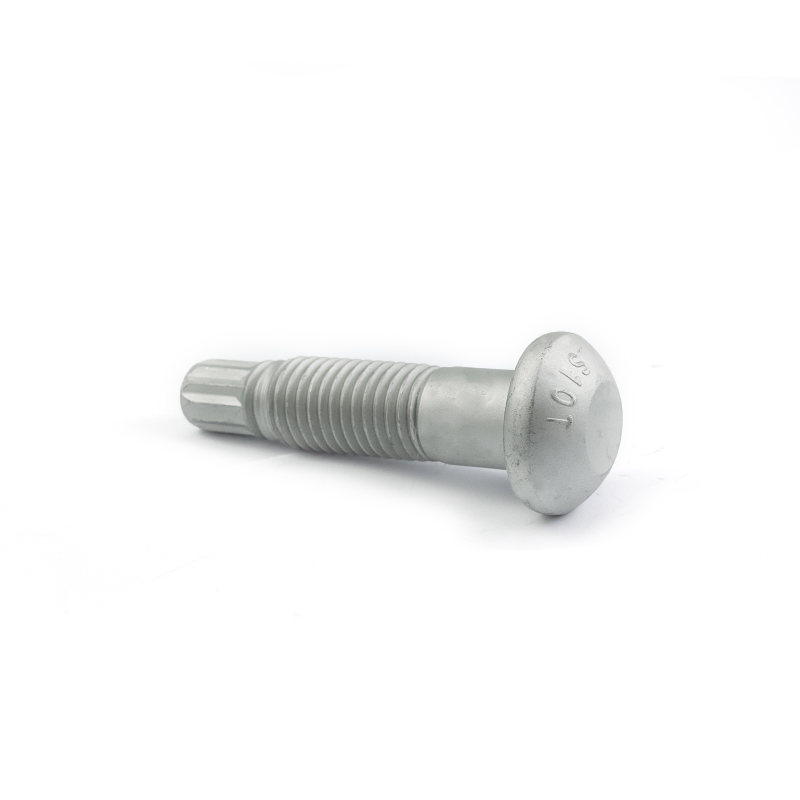

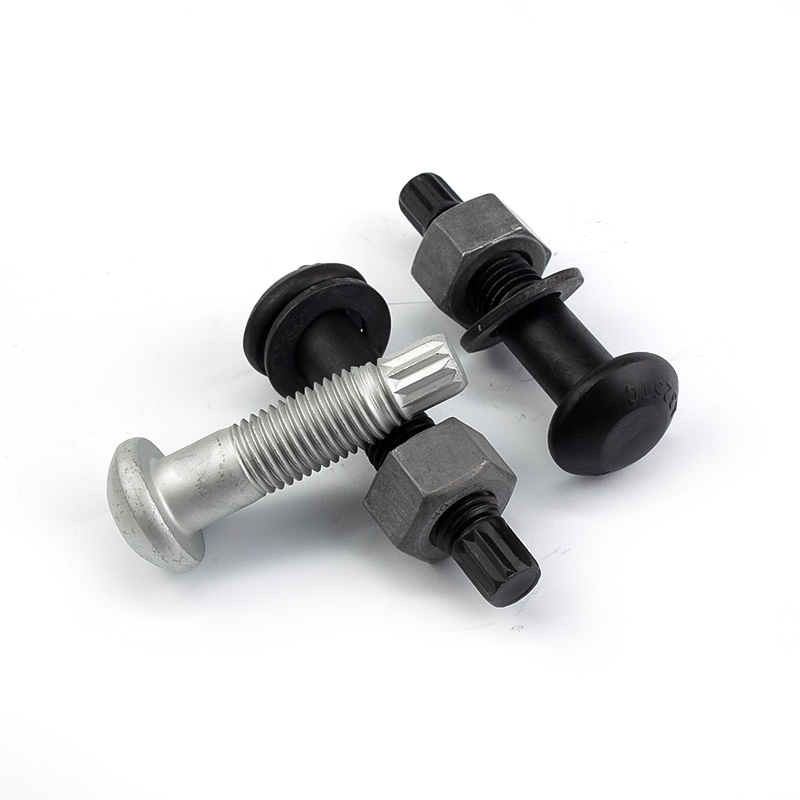

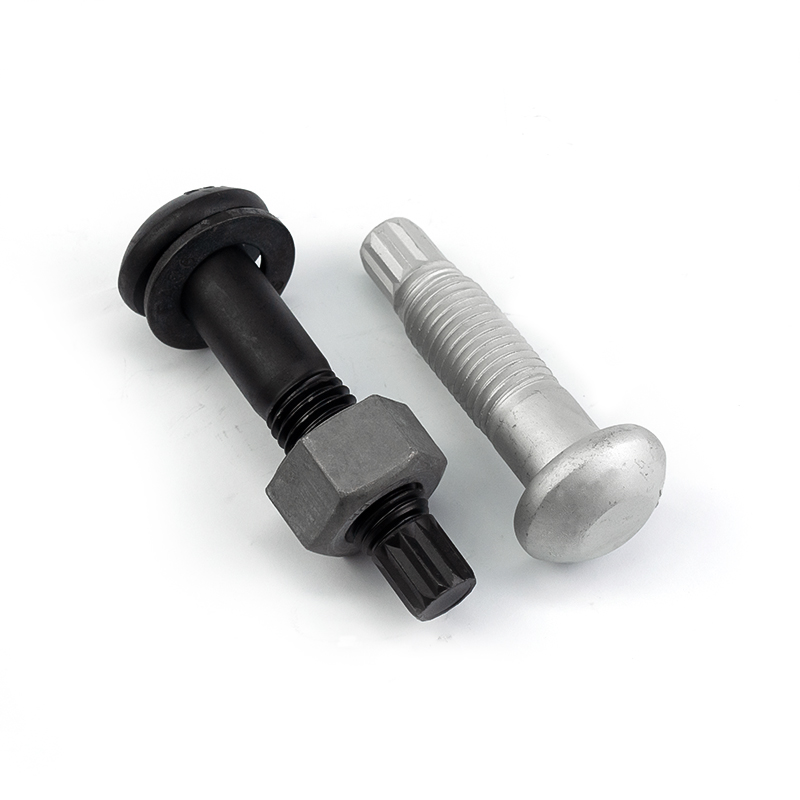

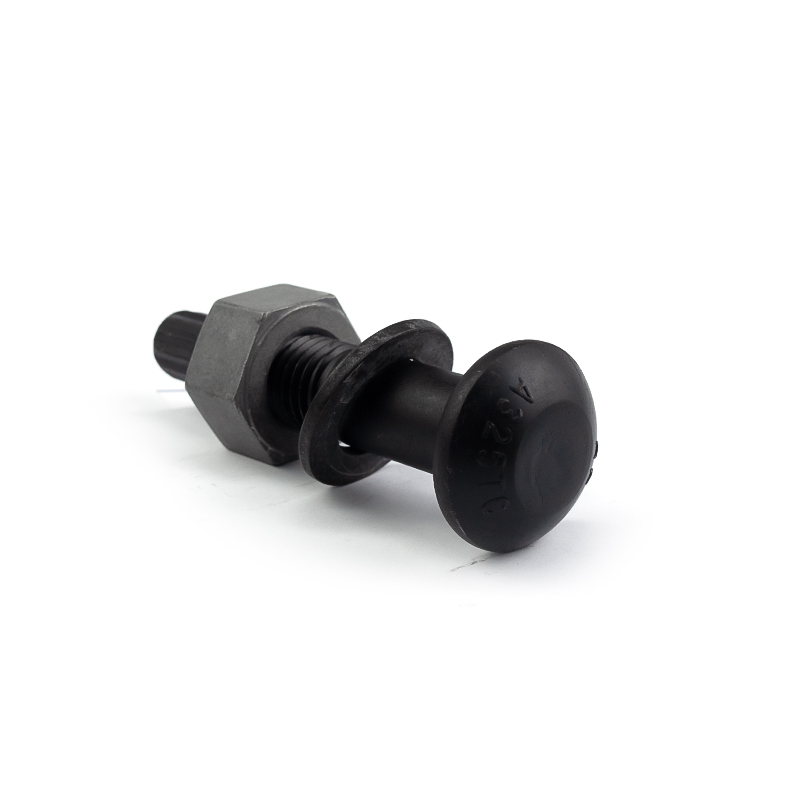

Thread			M5	M6	(M7)	M8	M10	M12	(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36
d
P			0.8	1	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4
a	Max		2.4	3	3	3.75	4.5	5.25	6	6	7.5	7.5	7.5	9	9	10.5	10.5	12
c	Min		0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
c	Max		0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
da	Max		5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4
dw	A	Min	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5	25.3	28.2	30	33.6	-	-	-	-
dw	B	Min	6.7	8.7	9.4	11.4	15.4	17.2	20.1	22	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1
e	A	Min	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75	30.14	33.53	35.72	39.98	-	-	-	-
e	B	Min	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79
k	Metric		3.5	4	4.8	5.3	6.4	7.5	8.8	10	11.5	12.5	14	15	17	18.7	21	22.5
	A	Min	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82	11.28	12.28	13.78	14.78	-	-	-	-
	A	Max	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18	11.72	12.72	14.22	15.22	-	-	-	-
	B	Min	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08
	B	Max	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92
k1	Min		2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5
r	Min		0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1
s	Max=Metric		8	10	11	13	17	19	22	24	27	30	32	36	41	46	50	55
	A	Min	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67	26.67	29.67	31.61	35.38	-	-	-	-
	B	Min	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16	26.15	29.16	31	35	40	45	49	53.8

A490 Type3

Chemical Composition(%)

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
≤0.75（Heat Analysis）	Min	0.2	0.4	-	-	0.45	0.2	0.2	0.15
≤0.75（Heat Analysis）	Max	0.53	-	0.035	0.04	-	-	0.6	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
＞0.75（Heat Analysis）	Min	0.3	0.4	-	-	0.45	0.2	0.2	0.15
＞0.75（Heat Analysis）	Max	0.53	-	0.035	0.04	-	-	0.6	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
≤0.75（Product	Min	0.19	0.37	-	-	0.42	0.17	0.17	0.14
≤0.75（Product	Max	0.55	-	0.04	0.045	-	-	0.63	-

	Element	C	Mn	P	S	Cr	Ni	Cu	Mo
＞0.75（Product Analysis）	Min	0.28	0.37	-	-	0.42	0.17	0.17	0.14
＞0.75（Product Analysis）	Max	0.55	-	0.04	0.045	-	-	0.63	-

Quality Assurance
•

100 % dimensional inspection thread gauges (Go / No-Go).
• Spectrometer material verification per lot.
• Salt-spray test 48–1,000 h depending on coating (ASTM B117).
• RoHS & REACH compliance certificates provided.
• Mill test certificate (MTC) EN 10204 3.1 available.
